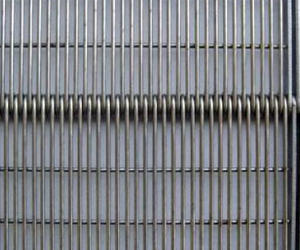

EYE LINK CONVEYOR BELT

Detail

Eye Link Conveyor Belt, mainly used for food and heating processing machine and materials are Stainless Steel 304/310S/314S,can bear high temperature.

Product details:

Material: SS 304, SS 316.
Wire diameter: 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm.
Spiral pitch: 2.4 mm to 100 mm.
Rod pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm.
Chain pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm.
Rod diameter: 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm.
Belt width: 200 mm to 6,000 mm.

Features:

Excellent air and fluid drainage.
Custom specification for special applications.
Numerous configuration options.
Cross flights and side guards provided.
Reduce downtime and maintenance.
Heavy-duty conveying requirements.
Flat carrying surface.
Multiple drive options.
Multiple spacers options.
Variable wire spacing.
