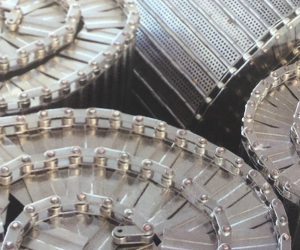

IRON PLATE CONVEYOR BELT

Metal Chain Plate Conveyor Belt also called plate link conveyor belt, is a very strong belt, made up by stainless steel iron plate and chains, driven by sprocket. The metal plate conveyor belt can supply larger contacting area and flat smooth surface for drying, sorting and conveying.

Specifications:

  • Material: carbon steel, SS 201, SS 304, SS 316.

  • Plate thickness: 0.8 mm, 1 mm, 1.2 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm.

  • Connection rod diameter: 5 mm, 6 mm, 8 mm, 10 mm, 12 mm.

  • Rod pitch: 19.05 mm, 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 76.2 mm.

  • Chain plate width: 200 mm to 4,000 mm.

  • Belt length: according to customer's requirement .

  • Surface treatment: hot dipped galvanized, blacking



Features:

  • Stable operation.  The flat and smooth surface supplies large conveying surface and stable conveying.

  • Convenient installation. The installation of metal plate conveyor belt has simple structure, which can be installed and replaced conveniently and fast.

  • Suitable for medium and heavy load transportation. The metal plate conveyor belts have large conveying surface and they can self support in heavy duty applications.

  • Corrosion and rust resistance. Various anti-corrosive materials and surface treatments ensures the metal plate conveyor belts corrosion and rust resistance. It can be used in harsh environments and arduous conditions.

  • Durable and long service life. The material of metal plate conveyor belt is tough, which can be used in good condition for long service life.



Applications:

As it's steady and smooth running, easily install and maintain, the Iron plate conveyor belt mainly uses in the bottle line, the packing line, the cleaning line, the drying line, the spraying line transportation machinery, is one kind of high request conveyer belt product.
