1.Instruction

Crowd control barrier are commonly used at many public events. security for special events, parades, festivals, concerts and sporting events.crowd control barrier is ideal where high quality, attractive and durable crowd control is required.

 2.Specifications

Specifications Normal Size
*Panel Size (mm) 914x2400, 1090x2000, 1090x2010, 940x2500
*Frame Tube (mm) 20, 25, 32, 40, 42 OD
*Frame Tube Thickness (mm) 1.2, 1.5, 1.8, 2.0
*Vertical Tube (mm) 12, 14, 16, 20 OD
*Vertical Tube Thickness (mm) 1.0, 1.2, 1.5
*Tube Space (mm) 100, 120, 190, 200
*Surface Treatment Hot dipped galvanized or Powder coated after welded
*Feet:Flat feet, Bridge feet and Tube feet

3.Application

1)Security and Safety

2) Traffic & Pedestrian Control

3)Special Events

4)Concerts

5)Stadiums/Arenas/Convention Centers

6) Fairs/Carnivals/Festivals

7) Parades/Rallies

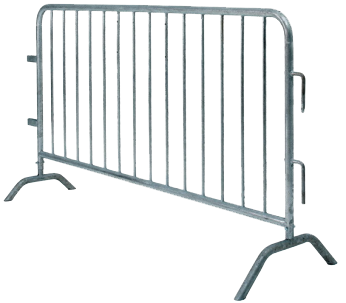

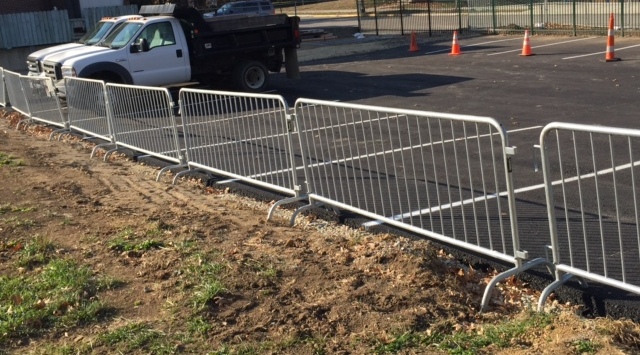

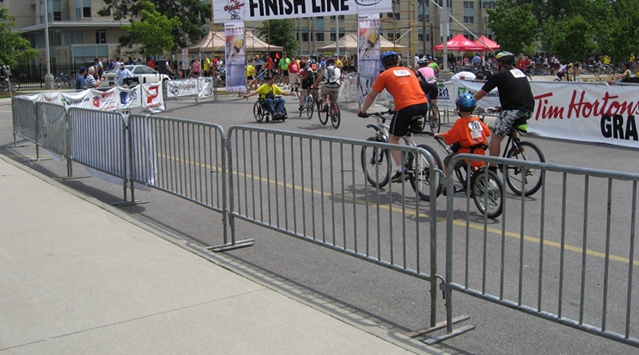

4.Crowd control barrier with bridge type foot

1)crowd control barrier with a bridge-style foot, is the best selling crowd control barrier on the market!
2)The bridge-foot design provides maximum stability for the barrier , thus making the product an ideal choice for use on grass, soft or uneven surfaces.
3)The Bridge Foot provides the best resistance to pushing by crowds - so if you are planning a parade, rally or concert, choose this  for your sensitive crowd control needs.

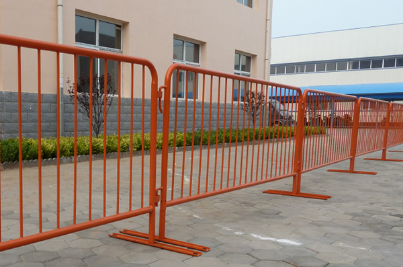

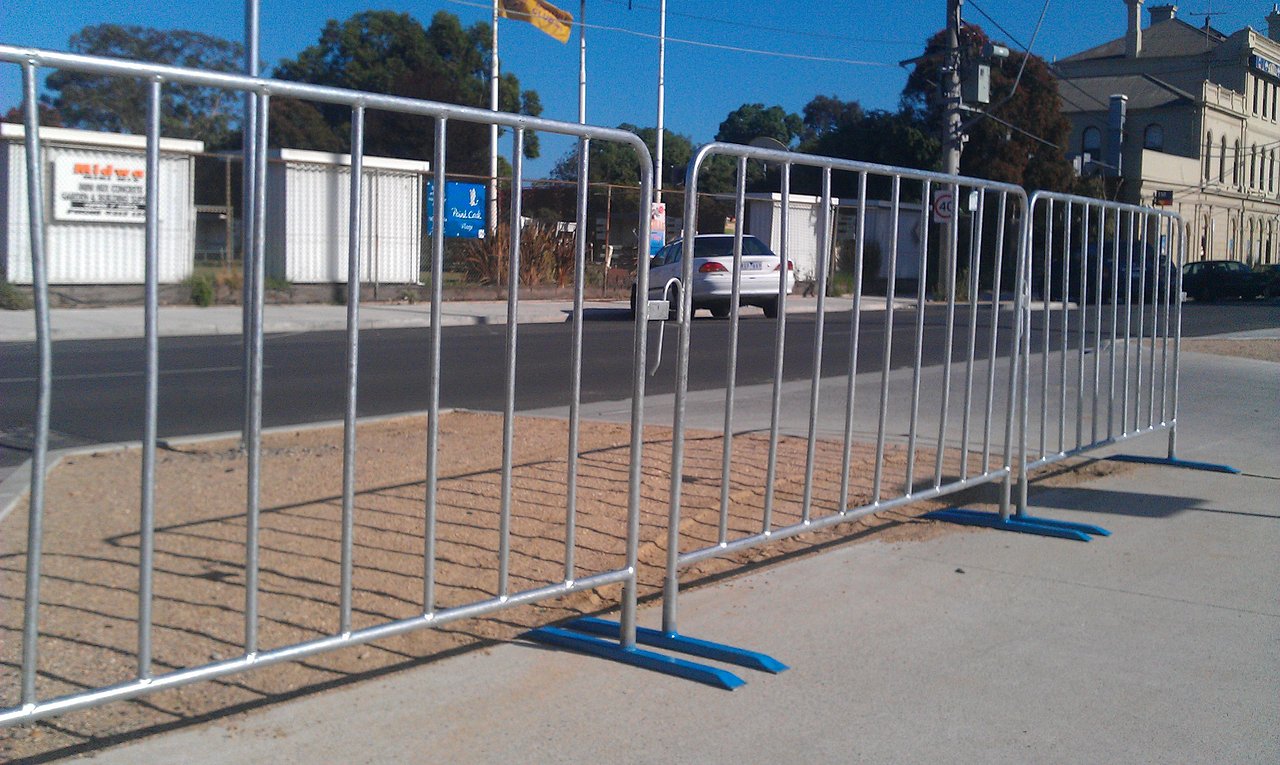

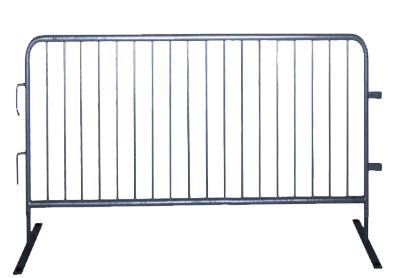

5.Crowd control barrier with flat type foot

1)crowd control barrier  with a flat-style foot, is the ideal choice at special events or venues that require funneling crowds or traffic in parallel lines.
2)The flat-foot design minimizes the tripping hazard and vehicle tires roll easily over the foot without damage to the barricade.
3)The flat foot distributes weight evenly and rubber grommets provide added protection for sensitive floors. Two holes in each foot allows it to be anchored to the ground.

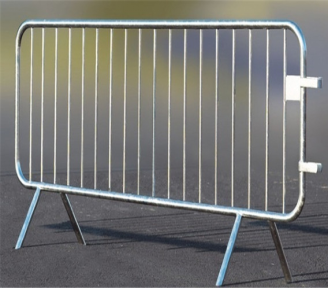

6.Crowd control barrier with V type foot

7.Surface treatment

1)hot dipped galvanized
crowd control barrier is fully hot-dipped galvanized after welding Each barrier is completely dipped in a gal bath after manufacture.
This is the best galvanizing process available.This means they will be far more weather resistant and durable, and will last much longer than other crowd barriers on the market.

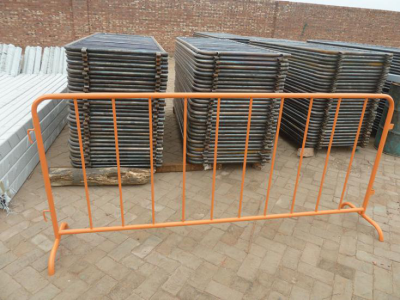

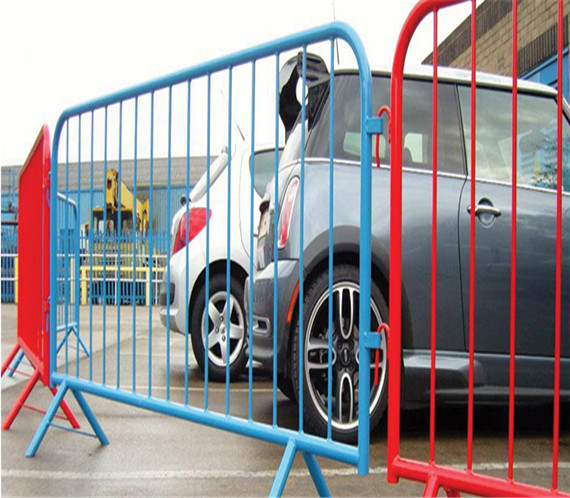

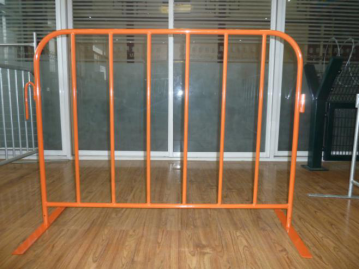

 2)Powder coating

 8.Quality and Service is Our Priority
We have our own quality test office, we test our products before delivery.
We take our responsibility to our customers very seriously, we are responsible for every product, your satisfaction is to give us the best repayment.

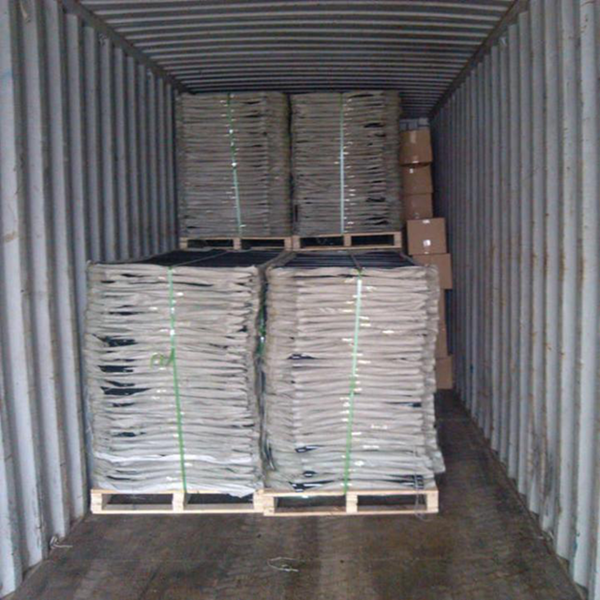

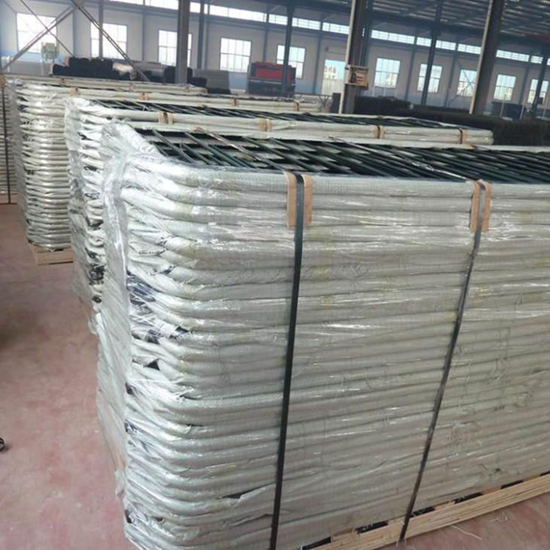

9.Packaging:

 Powder coated Crowd Control Barrier usually packaging by wooden or metal pallet to protect the PVC surface, and it is easy loading and unloading to use pallets.
